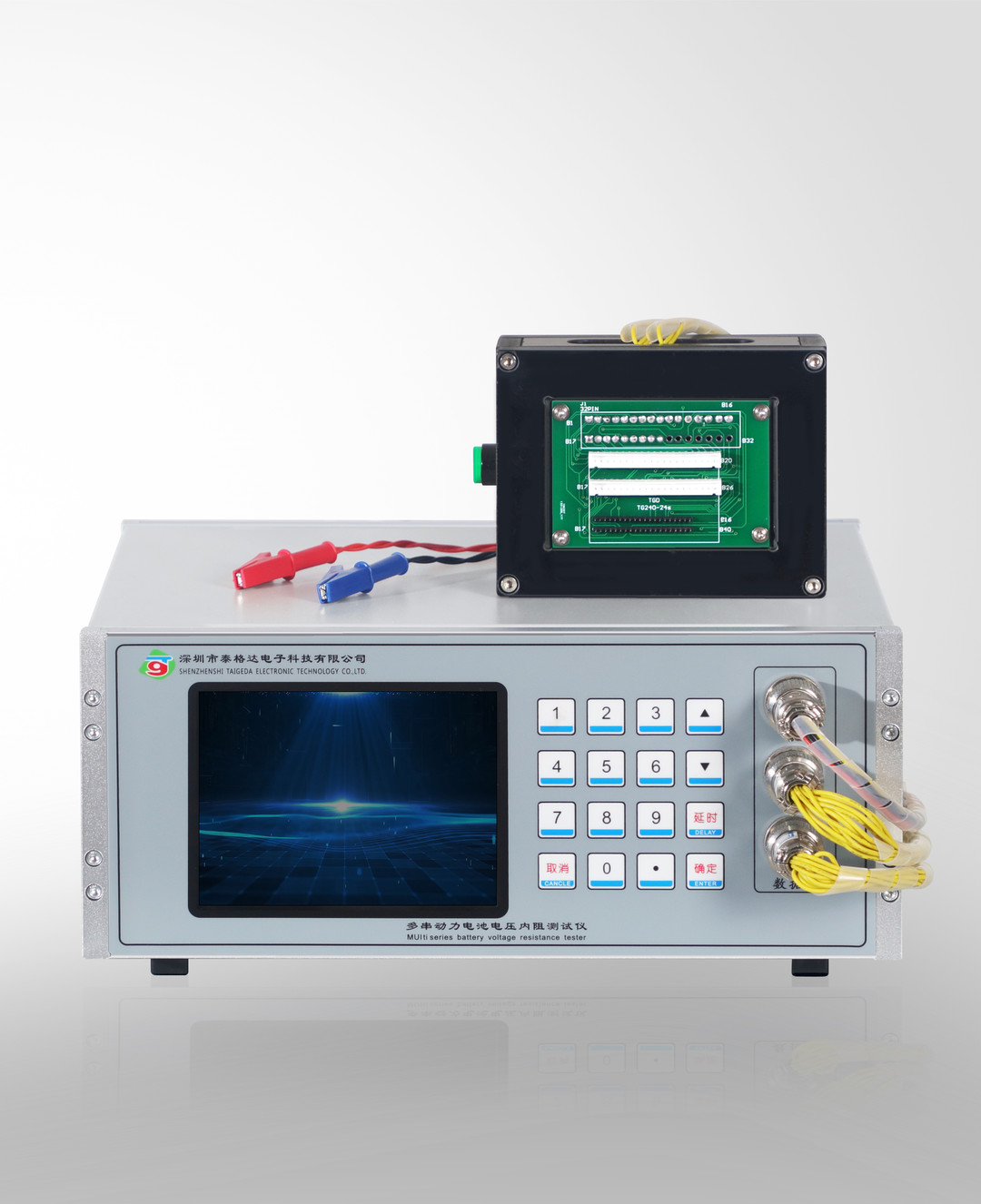

TG240 MULTI-STRING INTERNAL RESISTANCE PRESSURE DIFFERENCE TESTER
Application scope
This device is suitable for:

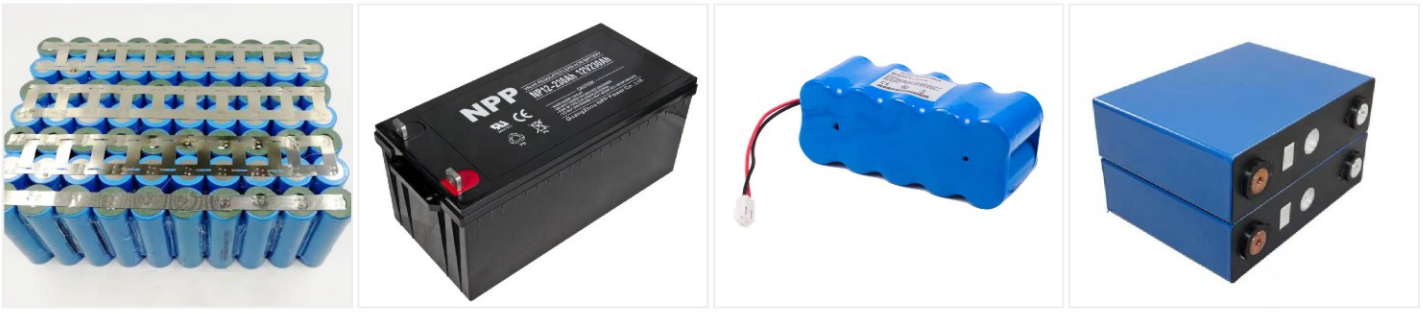

Check whether the combined batteries are correctly paired. Check the voltage and internal resistance of each battery pack to ensure the consistency of the battery pack.
sProduct characteristics
1.Using 4-wire sampling method,the internal resistance and pressure difference can be measured accurately,and the cell combination is good. |
2.Can communicate with host computer for data upload. |
3.You can save,query,and delete data. |
SpeciPcation parameters
Product name | multi-string internal resistance pressure difference tester |
Model | TG240 |
Chassis size | H:132mm、L:320mm、W:260mm |
Equipment weight | 5-6KG |
Operating ambient temperature | 1-50℃ |
Input power | AC220V±15% |
Voltage | 0-5.000V accuracy 1mV 5.00-100.00V accuracy 1mV |
Internal resistance | 0-50mΩ accuracy 0.01mΩ 0-10001mΩ accuracy 0.1mΩ |
