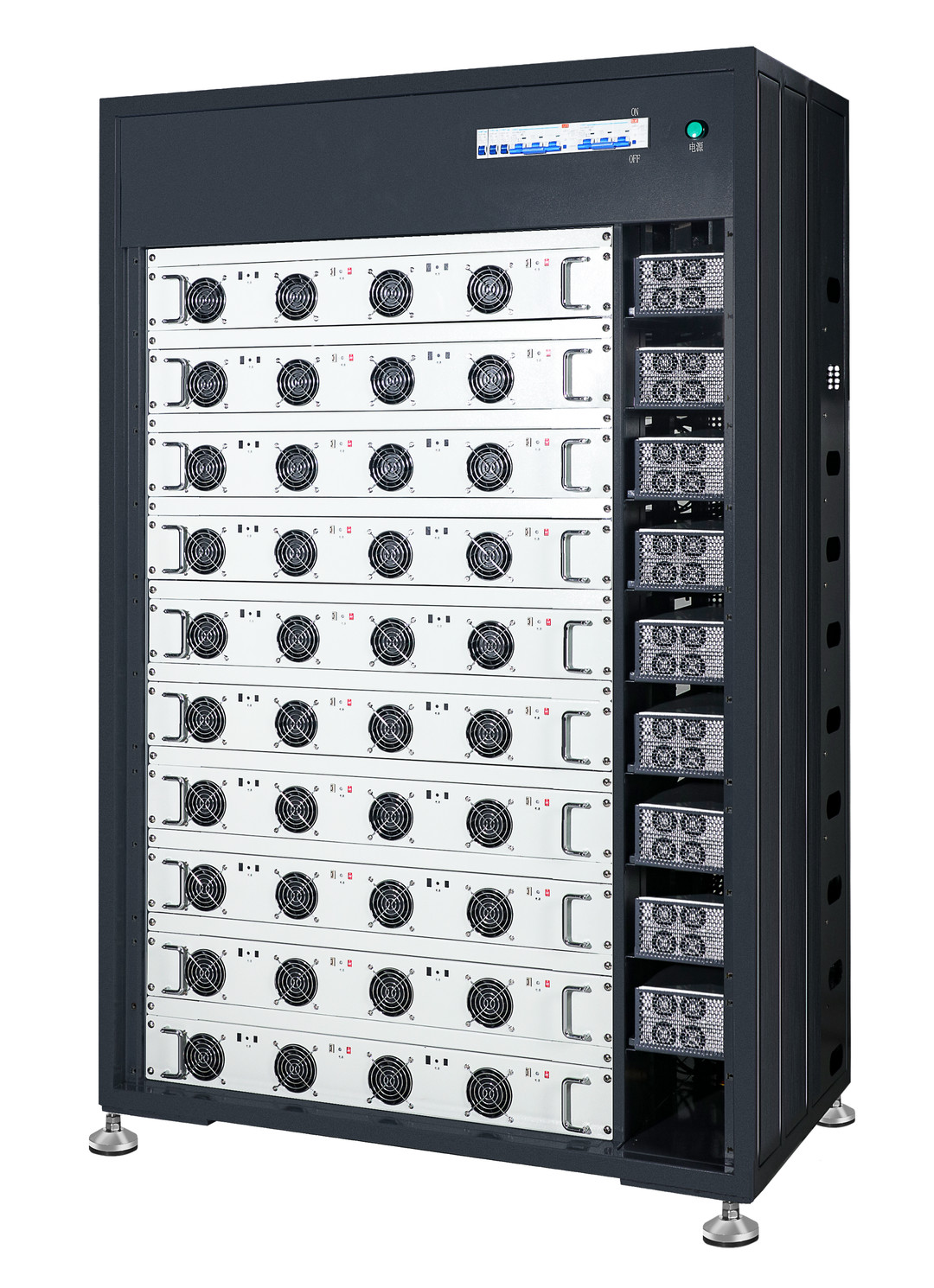

TG8008FEEDBACK TYPE BATTERY DETECTION EQUIPMENT CHARGING AND DISCHARGING

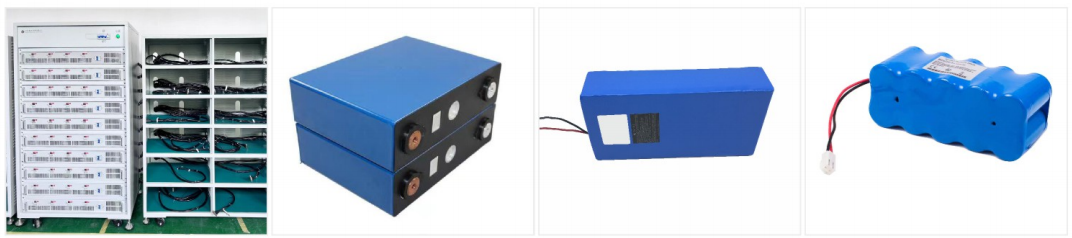

Application scope
This device is suitable for :
Battery module production inspection of battery manufacturer
Large-Current Charging and Discharge Detection for EV/HEV Power Battery System
Battery simulation test in actual road conditions
Maintenance of battery modules in battery factories and charging stations
The research organization carries out high current charging and discharging tests and battery performance tests on battery modules.
Product characteristics
| 32-bit ARM main control chip | greatly improves the execution speed and accurately records the variation state of battery voltage |
| Scan code to Pnd data | Barcode scanning can accurately recall the previous battery aging parameters on the computer. |
| Protection&Exception Prompts | With anti-reverse connection function，voltage upper and lower limit protection set protection，test exception alarm prompt |
| Energy feedback | Energy feedback，charging and discharging two-way energy saving，can save a large amount of electricity consumption，and save a largel amount of energy consumption heat generated by air conditioning electricity consumption. |
| CCCV Charging | There is no gap transition and no voltage and current shock during charging.can effectively prevent protection action and secondary protectionaction caused by islanding effect of PCB，or overshoot caused by heat concentration caused by peak current of electrode ear Current and voltage sampling is stable，high precision and long-term stability. |
| Voltage clamp | The voltage clamp is used to set the voltage to prevent damage to the battery or battery pack protection plate during charging when battery protection operation or equipment is abnormal. |
| Can be customized | ①Battery Pack Temperature Sampling：②Single-cell voltage sampling for battery pack；③Frequency output function；④Switch Action Function；⑥MES connection function |
SpeciPcation parameters
| Product name | Feedback type battery charging and discharging detection equipment | Equipment working temperature | 0-35℃ |
| Model | Tg8008 100V20A | Work noise | ≦65-75dB |
| Chassis size | H：1741mm，L：1092mm，W：600mm | Voltage range | 0-100V |
| Equipment weight | ≦353.5KG | Charge and discharge current | 0.2-20A continuously adjustable |
| Operating ambient temperature | 1-50°℃ | Voltage and current resolution | 0.1mV，0.1mA |
| Operating environment humidity | 0-90%RH | Accuracy | ±0.1% |
| Input power |
220V/50Hz Small power 380V/50Hz High power |
Parallel connection | Four channels |
