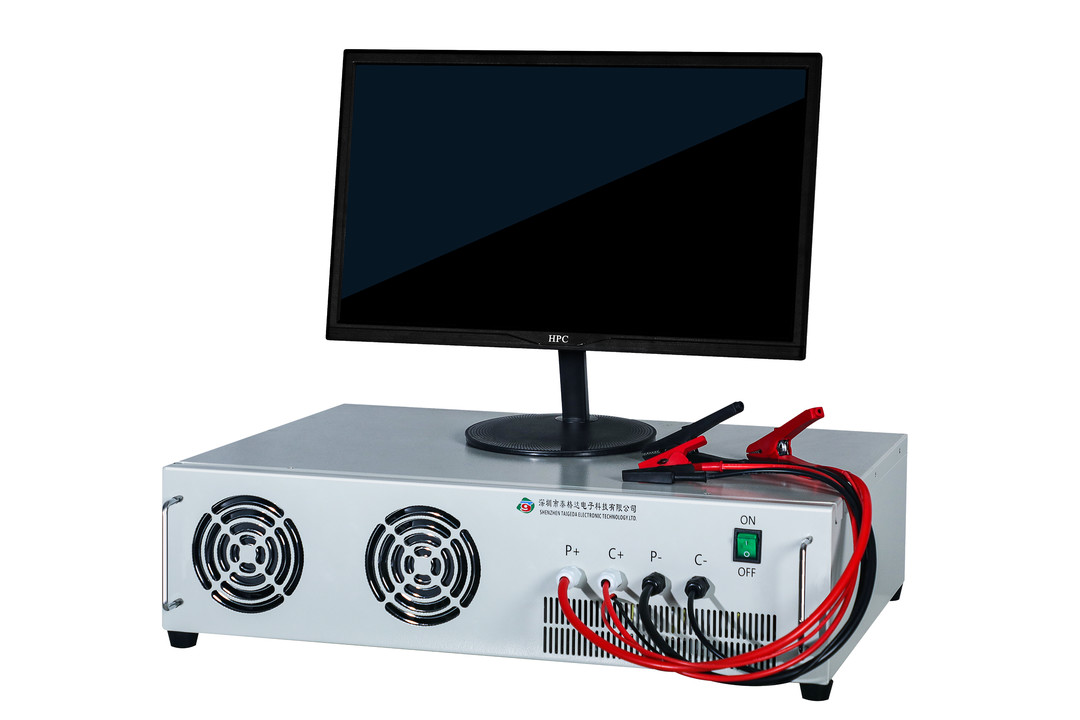

TG6000-DESKTOP BATTERYTESTER
Application scope
This device is suitable for:

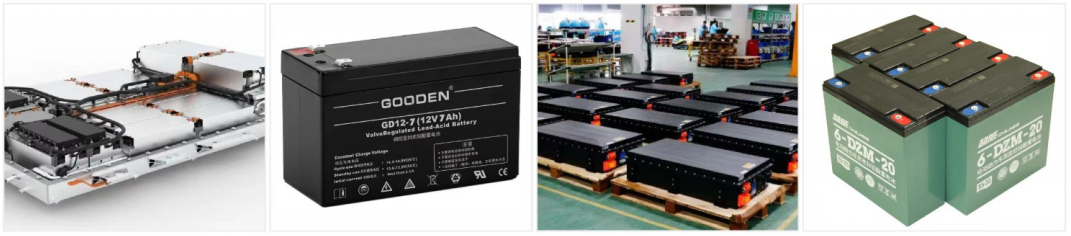

Power electric bicycle battery, power tool battery pack, street lamp battery pack performance test. Tests battery voltage, AC internal resistance, overcharge protection current, overdischarge protection current, upper and lower limits of continuous charging and discharging current voltage, voltage after test, and overcurrent protection time.
Product characteristics
| Data input | Start with the infrared code scanner（SN）and save the test data to the computer. |
| Functional mode | ①DC Electronic Load Mode；②Battery Production Test Quick Mode；③Correction mode |
| Can be customized | ①Battery Pack Temperature Sampling：②Single-cell voltage sampling for battery pack：③Frequency output function：④Switch Action Function：⑤MES connection function：⑥Step-by-Step Test Mode |
SpeciPcation parameters
| Product name | Battery tester | Equipment working temperature | 0-35℃ |
| Model | TG6000-Desktop | Voltage range | 0-30V |
| Chassis size | H：160mm、L：675mm，W：460mm | Internal resistance range | 0-2000mΩ，accuracy 0.01mΩ |
| Equipment weight | ≈25KG | overcharge current | 0-5A，accuracy ±0.1%。 |
| Operating ambient temperature | 1-50°℃ | Overdischarge current | 0-60A，accuracy ±0.1%。 |
| Operating environment humidity | 0-90%RH | Short circuit time | 0-2mS，accuracy ±0.1%。 |
| Input power | AC220V±15% | Scan code test | 1-36b |
| Voltage and current resolution | 1mV，1mA |
